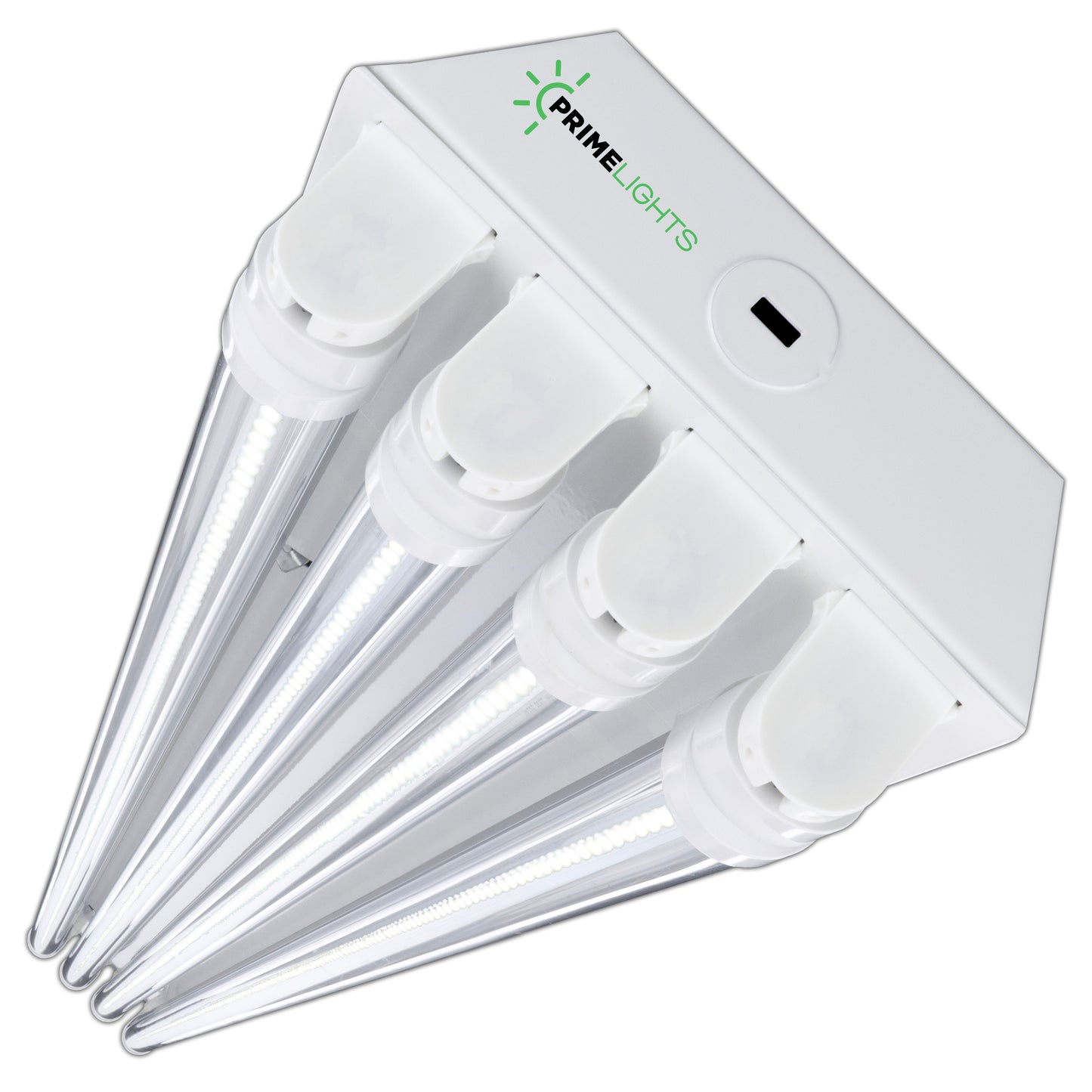

LED 4 Lamp T8 LED T8 Highbay 4XL Next-Gen LED Innovation: Sleek, Smart & Super Efficient - Clear LEDs - Other | Energy Efficient LED by Alamo Lights - Energy Efficient | by Alamo Lights

Best. Brighter. Stronger. Easy to Install.

Key Features:

• Commercial Specification Grade: Built for superior performance, durability, and reliability.
• Shipping: FREE and In Stock.

Certified Safety and Quality:

All fixtures undergo testing by UL, ETL, or CSA in conjunction with DLC certification, ensuring they meet or exceed U.S. safety, electrical, and quality standards. Contact us for rebate information.

Included LED Lamps:

• (4) ETL Sanitation & DLC Listed, flicker-free, shatterproof polycarbonate lamps.
• 180 Lumens Per Watt (imported).

Designed and Assembled:

• Fixture designed in Texas and made in Mexico.

Specifications:

• Material: 20-gauge cold-rolled steel with baked white enamel and a mirrored aluminum reflector.
• Wiring: Pre-wired lamp holders with luminaire disconnect and four connection points for easy daisy chaining.
• Input Voltage: 110V-277V (480V available on request).
• Power Consumption: 80W.
• Brightness: 14,400 Lumens (180+ LPW).
• Color Temperature: 5000K (other options available).
• CRI: 85+.
• Lifespan: 50,000+ hours (L70).
• Beam Angle: 120°.
• Operating Range: -20°F to 112°F.
• Fixture Dimensions: 48.5" L x 6" W x 3" H. Weight: 7 lbs.

Versatile Installation Options:

• Surface Mount: Multiple predrilled screw/bolt holes for easy mounting (hardware not included).
• Hanging Mount: Compatible with aircraft cable hangers, jack chain, or “S” hooks (hangers available as add-ons).

Lamp & Driver Design:

• Clear LED bulbs with internal drivers—no ballasts or external drivers required.
• Maintenance-free! Everything inside the fixture is built to last.

Warranty:

Comprehensive 5-year warranty on the entire fixture, including LED lamps.

Energy Efficiency:

• Uses approximately 40% less energy than T8 fluorescent fixtures.
• Fluorescent equivalent: 28,800 lumens.

Damp Location Rated:

Suitable for indoor use and outdoor covered areas (not for direct water exposure).

Applications:

The Alamo Lights® LED Stingray® 4 is perfect for ceiling heights up to 20 feet and transforms spaces into energy-efficient, daylight-like environments.
Ideal for:

• Metal buildings
• Warehouses
• Fab shops
• Garages
• Barns
• Hobby shops
• Car restoration spaces
• Showrooms
• Factories

Lighting Layout Recommendations:

• Replace 1-for-1 with 250W metal halides or approximately 1 fixture per 250 sq. ft. for basic lighting.
• Factors like mounting height, application, reflectivity, and desired light levels may affect layout.

Need help? Call our customer service team for a free custom lighting layout. Provide details like building dimensions, mounting height, and application, and we’ll guide you to the perfect setup!

Part Number:

AL-4SRHBG2-80XLCL

Upgrade your space with this reliable, efficient, and easy-to-install lighting solution.
